Limestone, Shale or Clay Crusher – Nigeria.

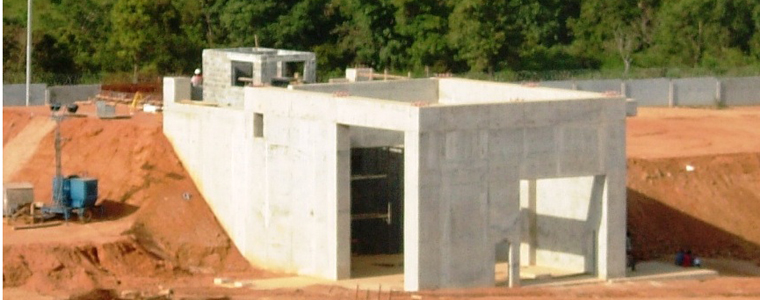

This crusher building was the second provided at this site and consists of two intake hoppers feeding the crusher housed within a concrete structure 37m x 22.2m overall on plan x 20m underground, with a 16.7m high steel enclosure housing 2 x 20 tonnes overhead gantry cranes.

The above example is just one of the 10 crusher structures designed to date.
